ASRock H810M-X WiFi specifications and in-depth review

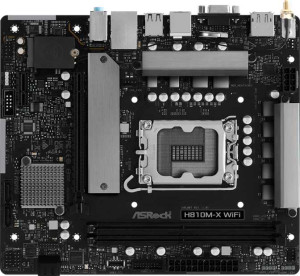

ASRock H810M-X WiFi

Manufacturer: ASRock

The ASRock H810M-X WiFi is a Micro-ATX motherboard designed around Intel's LGA 1851 platform, offering a compact footprint of 220 x 193 mm while integrating wireless connectivity out of the box. It ships with both Wi-Fi 5 (802.11ac) and Bluetooth 5 built in, making it a reasonable pick for systems where a clean, cable-free setup is a priority. The board carries a three-year warranty and omits RGB lighting, keeping its aesthetic straightforward and unadorned.

On the memory side, the H810M-X WiFi accommodates up to 128GB of DDR5 RAM across two slots running at speeds of up to 6400 MHz in a dual-channel configuration, though ECC memory is not supported. Storage options include one M.2 socket and four SATA 3 connectors, while the single PCIe 4.0 x16 slot handles discrete graphics. Rear connectivity covers HDMI 2.1, one DisplayPort output, a VGA connector, two USB 3.2 Gen 1 Type-A ports, four USB 2.0 ports, one USB Type-C port, a PS/2 port, and a single RJ45 Ethernet jack. Audio is handled by a 7.1-channel solution with three connectors, and the board includes a TPM header for security module use.

Pros
  • Supports DDR5 memory with speeds up to 6400 MHz and a maximum capacity of 128GB across two slots
  • Built-in Wi-Fi 5 and Bluetooth 5 eliminate the need for separate wireless adapters
  • Includes HDMI 2.1, DisplayPort, and VGA outputs, offering a range of display connection options
  • Four SATA 3 connectors and an M.2 socket provide flexible storage configuration
  • 7.1-channel audio support suits multi-speaker setups without requiring a dedicated sound card
  • Comes with a 3-year warranty
Cons
  • Only two memory slots limits future upgrade flexibility beyond the initial configuration
  • No PCIe 5.0 x16 slot, restricting compatibility with the latest high-bandwidth expansion cards
  • Just two fan headers may be insufficient for builds requiring more active cooling control
  • No S/PDIF output for users needing digital audio passthrough to external receivers
  • Lacks USB 3.2 Gen 2 and USB 4 ports, limiting high-speed peripheral connectivity
  • RAID 0+1 is not supported, reducing storage redundancy and performance configuration options
Who is this for?

This board is a solid fit for users building a compact desktop system around the LGA 1851 platform who do not need a sprawling full-ATX layout. Its built-in Wi-Fi 5 and Bluetooth 5 make it well suited for living room or office builds where running ethernet cables is impractical. The support for DDR5 memory up to 128GB at 6400 MHz, combined with four SATA 3 connectors and an M.2 socket, makes it a reasonable choice for general productivity workloads, light content creation, and everyday computing tasks. The inclusion of a VGA output alongside HDMI 2.1 and DisplayPort also makes it a practical option for environments that still rely on older display hardware.

Who is this NOT for?

Users looking to build a high-end gaming or workstation rig are likely to find this board limiting, as it lacks a PCIe 5.0 x16 slot for the latest graphics cards and offers no USB 4 or Thunderbolt connectivity for fast external storage or advanced peripherals. With only two memory slots and no ECC support, it is equally unsuitable for memory-intensive server or professional workstation applications that demand both capacity headroom and data integrity. Enthusiasts who rely on RAID storage arrays for redundancy or performance will also find the board's lack of RAID 0+1 support a meaningful limitation.

General info:

CPU socket LGA 1851
form factor Micro-ATX
supports Wi-Fi ✓
Wi-Fi version Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Has Bluetooth ✓
Bluetooth version 5
HDMI version HDMI 2.1
Easy to overclock ✕
has RGB lighting ✕
Easy to reset BIOS ✕
Has dual BIOS ✕
has aptX ✕
CPU sockets 1
Has integrated graphics ✕
warranty period 3 years
height 193 mm
width 220 mm
Has integrated CPU ✕

The ASRock H810M-X WiFi is built around the LGA 1851 socket and follows the Micro-ATX form factor, measuring 220 x 193 mm, making it suited for compact builds. It accommodates a single CPU and does not include an integrated processor or onboard graphics. Wireless connectivity is handled by built-in Wi-Fi 4 (802.11n) and Wi-Fi 5 (802.11ac), alongside Bluetooth 5, though aptX audio codec support is absent. The board outputs video via HDMI 2.1 but does not offer overclocking features, a dual BIOS setup, or a dedicated CMOS reset button. RGB lighting is not present on this model. The board does not support easy BIOS reset. ASRock backs the board with a 3-year warranty.

Memory:

maximum memory amount 128GB
RAM speed (max) 6400 MHz
memory slots 2
DDR memory version 5
memory channels 2
Supports ECC memory ✕

The board supports DDR5 memory across two slots in a dual-channel configuration, with a maximum capacity of 128GB. RAM speeds can reach up to 6400 MHz, providing headroom for faster kits. ECC memory is not supported on this board.

Ports:

USB 3.2 Gen 2 ports (USB-A) 0
USB 3.2 Gen 1 ports (USB-A) 2
USB 3.2 Gen 2 ports (USB-C) 0
USB 3.2 Gen 1 ports (USB-C) 0
USB 2.0 ports 4
USB 3.2 Gen 2x2 ports 0
USB 4 40Gbps ports 0
USB 4 20Gbps ports 0
Thunderbolt 4 ports 0
Thunderbolt 3 ports 0
has an HDMI output ✓
DisplayPort outputs 1
RJ45 ports 1
Has USB Type-C ✓
eSATA ports 0
DVI outputs 0
has a VGA connector ✓
PS/2 ports 1

The rear I/O panel offers a practical spread of connectivity, including two USB 3.2 Gen 1 Type-A ports and four USB 2.0 ports for peripheral use, alongside a single USB Type-C port. Higher-speed options such as USB 3.2 Gen 2, USB 4, Thunderbolt 3, and Thunderbolt 4 are absent. Display output is covered by an HDMI port, one DisplayPort output, and a VGA connector, while DVI and eSATA are not included. Networking is handled by a single RJ45 Ethernet jack, and a PS/2 port is also present for legacy input devices.

Connectors:

USB 3.2 Gen 1 ports (through expansion) 2
USB 2.0 ports (through expansion) 2
SATA 3 connectors 4
fan headers 2
USB 3.0 ports (through expansion) 2
M.2 sockets 1
Has TPM connector ✓
U.2 sockets 0
Has mSATA connector ✕
SATA 2 connectors 0

For internal connectivity, the board provides four SATA 3 connectors for storage devices alongside a single M.2 socket, while SATA 2 and U.2 sockets are not included and there is no mSATA connector. USB expansion headers consist of two USB 3.2 Gen 1 ports and two USB 2.0 ports available through internal headers, with an additional two USB 3.0 ports also accessible via expansion. Cooling is managed through two fan headers, and a TPM connector is present for those looking to attach a hardware security module.

Expansion slots:

PCIe 4.0 x16 slots 1
PCIe 5.0 x16 slots 0
PCIe 3.0 x16 slots 0
PCIe x1 slots 1
PCI slots 0
PCIe 2.0 x16 slots 0
PCIe x4 slots 0
PCIe x8 slots 0

Expansion options are modest but functional, with one PCIe 4.0 x16 slot available for a discrete graphics card or other full-bandwidth add-in cards, complemented by a single PCIe x1 slot for smaller expansion cards. No PCIe 5.0 x16, PCIe 3.0 x16, PCIe 2.0 x16, PCIe x4, PCIe x8, or legacy PCI slots are present, reflecting the compact nature of the Micro-ATX layout.

Audio:

audio channels 7.1
Has S/PDIF Out port ✕
audio connectors 3

The onboard audio solution supports 7.1-channel surround sound and provides three analog audio connectors for connecting speakers, headphones, and microphones. An S/PDIF output port is not included on this board.

Storage:

Supports RAID 0+1 ✕

The board does not support RAID 0+1 storage configuration.

Final Verdict

The ASRock H810M-X WiFi is a compact, no-frills Micro-ATX motherboard that delivers a well-rounded feature set for everyday desktop builds on the LGA 1851 platform. Its DDR5 support with up to 128GB capacity at 6400 MHz, combined with integrated Wi-Fi 5 and Bluetooth 5, gives it genuine appeal for users who want a capable, wireless-ready system without a sprawling footprint. That said, the board's limited expansion headroom — notably the absence of PCIe 5.0, USB 4, and ECC memory support — means it is best suited to mainstream productivity and general-purpose use rather than demanding workstation or enthusiast scenarios. For those building a compact, connectivity-friendly system with modest performance requirements, it represents a practical and coherent platform choice.
