Colorful GeForce RTX 5060 Ti NB Duo 16GB specifications and in-depth review

Colorful GeForce RTX 5060 Ti NB Duo 16GB

Manufacturer: Colorful

The Colorful GeForce RTX 5060 Ti NB Duo is a graphics card from Colorful's NB Duo line, designed around NVIDIA's Blackwell architecture. It carries a base clock of 2407 MHz with a boost reaching 2572 MHz, and the card measures 231 mm in length and 120 mm in height. RGB lighting is included, and the board connects to the system via PCI Express 5, with support for Intel Resizable BAR.

On the memory side, the card is equipped with 16GB of GDDR7 VRAM running on a 128-bit bus at an effective speed of 28000 MHz, delivering up to 448 GB/s of bandwidth. It provides 4608 shading units, 144 texture mapping units, and 48 render output units, translating to 23.7 TFLOPS of floating-point performance and a texture rate of 370.4 GTexels/s. Display output is handled through one HDMI 2.1b port and three DisplayPort connectors, supporting up to four monitors simultaneously, alongside features such as ray tracing, DLSS, and DirectX 12 Ultimate compatibility.

Pros
  • Comes with 16GB of GDDR7 VRAM, providing ample memory for demanding workloads and high-resolution rendering
  • The 128-bit memory bus operates at an effective speed of 28000 MHz, delivering up to 448 GB/s of bandwidth
  • Supports ray tracing and DLSS, enabling more advanced visual rendering and upscaling capabilities
  • Four display outputs — one HDMI 2.1b and three DisplayPort — allow connection of up to four monitors simultaneously
  • ECC memory support adds a layer of data integrity for compute-sensitive tasks
  • Built-in RGB lighting offers visual customization for users who care about system aesthetics
Cons
  • The 128-bit memory bus is relatively narrow, which limits memory bandwidth headroom compared to wider bus configurations at this VRAM capacity
  • No USB-C output is available, which may be a limitation for users with USB-C monitors or display adapters
  • Air-water cooling is not supported, restricting cooling options to the card's built-in solution only
  • With a TDP of 180W, the card places a meaningful power demand on the system's power supply and airflow setup
Who is this for?

This card is a solid fit for users engaged in gaming at high resolutions who also want access to ray tracing and DLSS-driven upscaling for smoother frame delivery. The 16GB of GDDR7 VRAM makes it equally relevant for content creators and 3D artists working with large textures or complex scenes, where memory capacity matters more than raw compute throughput. ECC memory support and Double Precision Floating Point capability also make it a reasonable choice for users running compute or professional workloads that demand memory reliability alongside graphics output.

Who is this NOT for?

Users who need maximum memory bandwidth through a wider bus — such as those running heavy multi-GPU compute pipelines or extremely large dataset visualizations — may find the 128-bit bus a limiting factor at this VRAM level. The absence of a USB-C output makes it a poor match for anyone relying on USB-C or Thunderbolt-based displays without an adapter. Similarly, users building compact or passively cooled systems should look elsewhere, as the card's 180W TDP and lack of air-water cooling support require adequate case airflow and a capable power supply to operate stably.

Performance:

GPU clock speed 2407 MHz
GPU turbo 2572 MHz
pixel rate 123.5 GPixel/s
floating-point performance 23.7 TFLOPS
texture rate 370.4 GTexels/s
GPU memory speed 1750 MHz
shading units 4608
texture mapping units (TMUs) 144
render output units (ROPs) 48
Has Double Precision Floating Point (DPFP) ✓

The Colorful GeForce RTX 5060 Ti NB Duo operates at a base clock of 2407 MHz, with a boost reaching 2572 MHz under load. Its 4608 shading units are paired with 144 texture mapping units and 48 render output units, yielding a texture rate of 370.4 GTexels/s and a pixel rate of 123.5 GPixel/s. Overall floating-point throughput sits at 23.7 TFLOPS, while the GPU memory runs at 1750 MHz. The card also supports Double Precision Floating Point (DPFP), broadening its suitability for workloads that rely on higher numerical precision.

Memory:

effective memory speed 28000 MHz
maximum memory bandwidth 448 GB/s
VRAM 16GB
GDDR version GDDR7
memory bus width 128-bit
Supports ECC memory ✓

The card is equipped with 16GB of GDDR7 VRAM running across a 128-bit memory bus at an effective speed of 28000 MHz, delivering a maximum memory bandwidth of 448 GB/s. ECC memory support is also present, which helps detect and correct memory errors in workloads where data integrity is a concern.

Features:

DirectX version DirectX 12 Ultimate
OpenGL version 4.6
OpenCL version 3
Supports multi-display technology ✓
supports ray tracing ✓
Supports 3D ✓
supports DLSS ✓
has XeSS (XMX) ✕
AMD SAM / Intel Resizable BAR Intel Resizable BAR
has LHR ✕
has RGB lighting ✓
supported displays 4

The card supports DirectX 12 Ultimate, OpenGL 4.6, and OpenCL 3, covering a broad range of graphics and compute workloads. Ray tracing and DLSS are both supported, while XeSS (XMX) is not present. It includes Intel Resizable BAR support and does not carry Lite Hash Rate (LHR) restrictions. Multi-display technology is enabled with support for up to four simultaneous displays, and stereoscopic 3D is also available. RGB lighting is built in for visual customization.

Ports:

has an HDMI output ✓
HDMI ports 1
HDMI version HDMI 2.1b
DisplayPort outputs 3
USB-C ports 0
DVI outputs 0
mini DisplayPort outputs 0

The card's display output configuration consists of one HDMI 2.1b port and three DisplayPort outputs, totaling four connectors. There are no USB-C, DVI, or mini DisplayPort outputs present on this model.

General info:

GPU architecture Blackwell
Thermal Design Power (TDP) 180W
PCI Express (PCIe) version 5
semiconductor size 5 nm
number of transistors 21900 million
Has air-water cooling ✕
width 231 mm
height 120 mm

The card is built on the Blackwell architecture, fabricated on a 5 nm process with 21,900 million transistors, and connects to the host system via PCI Express 5. It carries a Thermal Design Power of 180W and does not feature air-water cooling. Physically, the card measures 231 mm in width and 120 mm in height.

Final Verdict

The Colorful GeForce RTX 5060 Ti NB Duo 16GB is a well-specified graphics card that brings together Blackwell architecture, ray tracing, DLSS support, and a generous 16GB of GDDR7 VRAM in a package suited to both gaming and lighter professional workloads. Its ECC memory support and DPFP capability give it a degree of utility beyond typical consumer use, while four simultaneous display outputs add practical flexibility. The 128-bit memory bus and absence of USB-C output are real constraints that users should weigh against their specific setup, but for those whose requirements align with what this card offers, it represents a coherent and capable option within its category.

Popular Comparisons

Colorful GeForce RTX 5060 Ti NB Duo 16GB
Colorful GeForce RTX 5060 Ti NB Duo 16GB
VS
MSI GeForce RTX 5060 Ti Gaming Trio OC 16GB
MSI GeForce RTX 5060 Ti Gaming Trio OC 16GB
Colorful GeForce RTX 5060 Ti NB Duo 16GB
Colorful GeForce RTX 5060 Ti NB Duo 16GB
VS

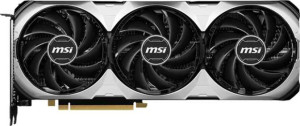

MSI GeForce RTX 4070 Ti Super Ventus 3X
