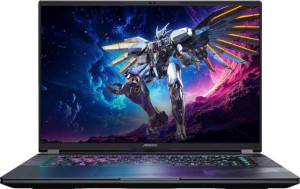

The Gigabyte Aorus Elite 16 AE6H (2025) is a gaming laptop with a 20mm thin profile and physical dimensions of 357mm wide by 254mm deep, resulting in a total volume of 1,813.56 cm³. It weighs 2,300 grams and comes equipped with a backlit keyboard, making it functional in low-light environments. The chassis does not use a fanless design, nor does it offer weather sealing or rugged construction, positioning it as a conventional gaming machine rather than a ruggedized or field-ready device.
The laptop features a 16″ LED-backlit IPS LCD panel with a 2560×1600 resolution and a pixel density of 188 ppi, delivering a sharp 16:10 aspect ratio image across the screen. It runs at a 165Hz refresh rate with a typical brightness of 400 nits, and the system supports up to four simultaneous displays in total. The panel does not include touch input or an anti-reflection coating.
The system is powered by a 24-thread CPU built on a 4nm process, running at speeds of 8 cores at 2.7 GHz and 16 cores at 2.1 GHz, with a turbo clock reaching 5.4GHz, and it supports multithreading and 64-bit operation. The GPU runs at a base clock of 2235 MHz, boosting up to 2520 MHz, and delivers 23.22 TFLOPS of floating-point performance alongside a texture rate of 362.9 GTexels/s and a pixel rate of 121 GPixel/s, with DirectX 12 Ultimate support; it does not include XeSS. Memory consists of 32GB of DDR5 RAM across two slots, expandable to 64GB, while the GPU is equipped with 8GB of GDDR7 VRAM. Storage is handled by a 1024GB NVMe SSD using PCIe 4 and flash storage technology.
In PassMark testing, the system achieves an overall CPU score of 56,426 and a single-thread score of 4,723, reflecting the processor's multi-core throughput and per-core responsiveness respectively. On the graphics side, the PassMark G3D result of 19,987 represents the GPU's measured rendering capability under that benchmark's workload.
The laptop offers a well-rounded port selection, including two USB 3.2 Gen 2 Type-A ports, two USB 4 40Gbps ports, and one Thunderbolt 4 port, while there are no USB 3.2 Gen 1, USB 2.0, or USB 4 20Gbps ports present. Video output is handled by a single HDMI 2.1 port, with no DisplayPort, mini DisplayPort, or VGA connector available. Wireless connectivity covers Wi-Fi 7 down through Wi-Fi 4 and Bluetooth 5.4, and wired networking is supported via one RJ45 port. The machine also includes an external memory slot and supports AirPlay.
The laptop is equipped with a 99 Wh battery, sitting at the upper end of what is typically permitted for air travel, and includes sleep-and-charge USB ports that allow connected devices to be charged even when the system is powered off. It does not use a MagSafe power adapter.
Audio is handled by stereo speakers with Dolby Atmos support and a 3.5mm headset jack, while two built-in microphones cover voice capture. The front camera is paired with 3D facial recognition for login, though there is no fingerprint scanner, and voice commands are not supported. On the graphics side, the system supports both ray tracing and DLSS, enhancing rendering quality and performance in compatible applications. Motion sensors such as a gyroscope, accelerometer, and compass are absent, as are GPS, an S/PDIF output, an optical disc drive, and a stylus.
The CPU is a laptop-type processor mounted in a BGA 2114 socket with a 50W TDP, a maximum operating temperature of 105°C, a clock multiplier of 27, and an unlocked multiplier; it uses big.LITTLE technology, supports Turbo Boost version 2, includes integrated graphics, and carries 36MB of L3 cache and 40MB of L2 cache alongside instruction set support for MMX, F16C, FMA3, AES, AVX, AVX2, SSE 4.1, and SSE 4.2, as well as NX bit. The GPU is based on the Blackwell architecture and features 4,608 shading units, 144 texture mapping units, and 48 render output units, with a native memory speed of 2,000 MHz and an effective speed of 25,400 MHz over a 128-bit bus, yielding a maximum memory bandwidth of 405.8 GB/s; it supports multi-display output, stereoscopic 3D, Double Precision Floating Point, OpenCL 3, OpenGL 4.6, and ECC memory, and does not include LHR. System-level features include Intel Resizable BAR, dual memory channels with a maximum RAM speed of 6,400 MHz, and 405.8 GB/s of memory bandwidth.
