Design:
| Type |
Gaming |
| weight |
2380 g |
| Uses a fanless design |
✕ |
| Has a backlit keyboard |
✓ |
| warranty period |
1 years |
| volume |
1945.062 cm³ |
| width |
359 mm |
| height |
258 mm |
| thickness |
21 mm |
| is weather-sealed (splashproof) |
✕ |

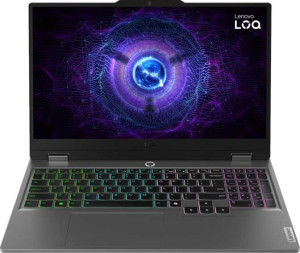

The Lenovo LOQ 15IRX9 is a gaming laptop with a footprint of 359 mm wide by 258 mm tall and a thickness of just 21 mm, resulting in a total volume of 1,945.06 cm³. It weighs 2,380 g, which is fairly typical for a machine in this category. The design is not fanless, meaning it relies on active cooling to manage thermals, and it does not carry a weather-sealed or splashproof rating. On the usability side, it includes a backlit keyboard for low-light use. The laptop comes with a one-year warranty.
Display:
| screen size |
15.6" |
| resolution |
1920 x 1080 px |
| pixel density |
141 ppi |
| Display type |
LCD, LED-backlit, IPS |
| has a touch screen |
✕ |
| brightness (typical) |
300 nits |
| refresh rate |
144Hz |
| has anti-reflection coating |
✓ |
| supported displays |
4 |
The laptop features a 15.6″ IPS LCD panel with LED backlighting, rendering at a resolution of 1920 x 1080 px and a pixel density of 141 ppi. One of its more notable attributes for gaming use is its 144Hz refresh rate, which allows for smoother motion in fast-paced content. Typical brightness is rated at 300 nits, and the screen includes an anti-reflection coating to help reduce glare. The display does not support touch input. The system can drive up to 4 displays simultaneously, including the built-in panel.
Performance:
| RAM |
24GB |
| RAM speed |
4800 MHz |
| Uses flash storage |
✓ |
| internal storage |
1024GB |
| CPU speed |
6 x 2.4 & 4 x 1.8 GHz |
| CPU threads |
16 threads |
| VRAM |
4GB |
| floating-point performance |
4.329 TFLOPS |
| GDDR version |
GDDR6 |
| texture rate |
67.65 GTexels/s |
| pixel rate |
42.28 GPixel/s |
| Is an NVMe SSD |
✓ |
| DirectX version |
DirectX 12 Ultimate |
| GPU clock speed |
712 MHz |
| uses multithreading |
✓ |
| maximum memory amount |
32GB |
| DDR memory version |
5 |
| turbo clock speed |
4.6GHz |
| GPU turbo |
1740 MHz |
| memory slots |
2 |
| PCI Express (PCIe) version |
4 |
| semiconductor size |
8 nm |
| has XeSS (XMX) |
✕ |
| Supports 64-bit |
✓ |
The system is powered by a CPU running at 6 x 2.4 GHz and 4 x 1.8 GHz across 16 threads, with a turbo clock speed reaching up to 4.6 GHz, and it supports multithreading as well as 64-bit operation. It comes with 24GB of DDR5 RAM clocked at 4800 MHz across 2 memory slots, with a maximum supported capacity of 32GB. Storage is handled by a 1024GB NVMe SSD using flash storage and a PCIe 4 interface. On the graphics side, the GPU has a base clock of 712 MHz boosting up to 1740 MHz, backed by 4GB of GDDR6 VRAM, and delivers 4.329 TFLOPS of floating-point performance alongside a texture rate of 67.65 GTexels/s and a pixel rate of 42.28 GPixel/s. The GPU supports DirectX 12 Ultimate but does not include XeSS. The CPU is manufactured on an 8 nm process node.
Benchmarks:
| Geekbench 6 result (multi) |
11891 |
| Geekbench 6 result (single) |
2337 |
| PassMark (G3D) result |
9278 |
| PassMark result |
25071 |
| PassMark result (single) |
3553 |
In CPU benchmarking, the laptop recorded a Geekbench 6 multi-core score of 11,891 and a single-core score of 2,337, reflecting the processor's threading capability alongside its per-core output. The overall PassMark result stands at 25,071, with a single-threaded PassMark score of 3,553. On the graphics side, the PassMark G3D result comes in at 9,278, providing a standardized reference point for the GPU's rendering performance.
Connectivity:
| USB 3.2 Gen 2 ports (USB-C) |
1 |
| USB 3.2 Gen 2 ports (USB-A) |
0 |
| USB 4 20Gbps ports |
0 |
| USB 4 40Gbps ports |
0 |
| Thunderbolt 4 ports |
0 |
| USB 3.2 Gen 1 ports (USB-C) |
0 |
| USB 3.2 Gen 1 ports (USB-A) |
3 |
| Thunderbolt 3 ports |
0 |
| has an HDMI output |
✓ |
| Has USB Type-C |
✓ |
| supports Wi-Fi |
✓ |
| Wi-Fi version |
Wi-Fi 6 (802.11ax), Wi-Fi 5 (802.11ac), Wi-Fi 4 (802.11n) |
| has an external memory slot |
✕ |
| Bluetooth version |
5.2 |
| RJ45 ports |
1 |
| HDMI ports |
1 |
| HDMI version |
HDMI 2.1 |
| DisplayPort outputs |
0 |
| has AirPlay |
✓ |
| mini DisplayPort outputs |
0 |
| has a VGA connector |
✕ |
The laptop's wired port selection includes one USB 3.2 Gen 2 Type-C port, three USB 3.2 Gen 1 Type-A ports, one RJ45 Ethernet jack, and one HDMI 2.1 output. There are no Thunderbolt 3 or 4 ports, no USB 4 ports, no DisplayPort or mini DisplayPort outputs, and no VGA connector. An external memory card slot is also absent. For wireless connectivity, the machine supports Wi-Fi 6 (802.11ax) along with Wi-Fi 5 and Wi-Fi 4, and pairs that with Bluetooth 5.2. AirPlay is supported as well.
Battery:
| battery size |
60 Wh |
| Has sleep-and-charge USB ports |
✓ |
| Has a MagSafe power adapter |
✕ |
The laptop is equipped with a 60 Wh battery and supports sleep-and-charge functionality, allowing connected USB devices to be charged even when the system is in sleep mode. It does not use a MagSafe power adapter.
Features:
| has stereo speakers |
✓ |
| has a socket for a 3.5 mm audio jack |
✓ |
| supports ray tracing |
✓ |
| supports DLSS |
✓ |
| has Dolby Atmos |
✕ |
| Stylus included |
✕ |
| Has a fingerprint scanner |
✕ |
| number of microphones |
2 |
| Uses 3D facial recognition |
✕ |
| has voice commands |
✕ |
| has a front camera |
✓ |
| Has S/PDIF Out port |
✕ |
| has a gyroscope |
✕ |
| has GPS |
✕ |
| has an accelerometer |
✕ |
| has a compass |
✕ |
| Has an optical disc drive |
✕ |
For audio, the laptop includes stereo speakers, a 3.5 mm headset jack, and two microphones, though it does not support Dolby Atmos or an S/PDIF output. A front camera is present for video calls, but there is no fingerprint scanner, 3D facial recognition, or voice command functionality. On the gaming features side, the GPU supports both ray tracing and DLSS, which are relevant for compatible titles. The laptop does not include a stylus, an optical disc drive, or motion and location sensors such as a gyroscope, accelerometer, compass, or GPS.
Miscellaneous:
| clock multiplier |
24 |
| has LHR |
✕ |
| Supports ECC memory |
✓ |
| Has Double Precision Floating Point (DPFP) |
✓ |
| Has air-water cooling |
✕ |
| Thermal Design Power (TDP) |
75W |
| Supports 3D |
✓ |
| OpenCL version |
3 |
| OpenGL version |
4.6 |
| memory bus width |
128-bit |
| effective memory speed |
12000 MHz |
| maximum memory bandwidth |
192 GB/s |
| render output units (ROPs) |
40 |
| texture mapping units (TMUs) |
64 |
| shading units |
2048 |
| GPU memory speed |
1500 MHz |
| AMD SAM / Intel Resizable BAR |
Intel Resizable BAR |
| GPU architecture |
Ampere |
| GPU name |
UHD Graphics 710 |
| L2 cache |
16 MB |
| Type |
Laptop |
| Has an unlocked multiplier |
✓ |
| Has NX bit |
✓ |
| L3 cache |
20 MB |
| CPU temperature |
100 °C |
| GPU execution units |
16 |
| Has integrated graphics |
✓ |
| memory channels |
2 |
| Uses big.LITTLE technology |
✓ |
| instruction sets |
SSE 4.2, SSE 4.1, AVX, AES, FMA3, F16C, MMX |
| RAM speed (max) |
4800 MHz |
The CPU carries a clock multiplier of 24 with an unlocked multiplier, operates under a 75W TDP, and has a maximum rated temperature of 100 °C. It uses big.LITTLE technology, supports ECC memory and Double Precision Floating Point, includes an NX bit for security, and comes with 16 MB of L2 cache and 20 MB of L3 cache. The processor supports instruction sets including SSE 4.1, SSE 4.2, AVX, AES, FMA3, F16C, and MMX, and integrates a UHD Graphics 710 GPU with 16 execution units. The discrete GPU is built on the Ampere architecture and features 2048 shading units, 64 texture mapping units, 40 ROPs, and a 128-bit memory bus running at 1500 MHz with an effective speed of 12000 MHz, yielding a maximum memory bandwidth of 192 GB/s. RAM is supported across 2 channels at up to 4800 MHz, and the system uses Intel Resizable BAR. API support covers OpenCL 3 and OpenGL 4.6, and stereoscopic 3D is also supported. The GPU does not use LHR, and the system does not employ air-water cooling.
