Steam Frame specifications and in-depth review

Steam Frame

Manufacturer: Valve

The Steam Frame is a standalone VR headset that combines wireless freedom with a fairly compact build, weighing in at 440 grams with a 5819 mAh battery and a built-in battery level indicator. It supports adjustable IPD and adjustable lenses, catering to a range of users seeking a personalized fit without additional hardware.

On the technical side, the Steam Frame runs on an 8-core processor clocked at 2.89 GHz per core, paired with 16GB of RAM and 1024GB of internal storage, supplemented by an external memory slot. Its LCD panel delivers a resolution of 4320 x 4320 pixels per eye at a 144Hz refresh rate across a 110-degree field of view. Tracking is handled by six sensors across four cameras, covering 360-degree head movement, eye tracking, gesture control, and infrared sensing. Connectivity options include USB Type-C, Bluetooth 5.3, Wi-Fi 7 support, and compatibility with Android devices.

Pros
  • Supports wireless use with a 5819 mAh battery, allowing extended sessions without being tethered to a cable
  • Both IPD and lenses are adjustable, making it easier to achieve a comfortable and clear view for different users
  • The 4320 x 4320 px resolution combined with a 144Hz refresh rate provides sharp and fluid visuals
  • Comprehensive tracking setup with six sensors, four cameras, eye tracking, gesture control, and full 360-degree head movement support
  • Comes with touch controllers included in the box, with voice command support adding a hands-free interaction option
  • 1024GB of internal storage plus an external memory slot provides substantial space for local content with room to expand
Cons
  • No HDMI, DisplayPort, or mini DisplayPort outputs limit options for connecting to external displays
  • USB connectivity is limited to version 2.0, which restricts data transfer speeds despite the USB Type-C port
  • Not compatible with iOS devices, limiting smartphone integration to Android users only
  • At 440 g, the headset is on the heavier side for extended wear comfort
  • Does not include a compass or laser tracking system, which may affect certain use cases that rely on those specific sensing capabilities
Who is this for?

The Steam Frame is well-suited to users who want a standalone, wireless VR experience without being tied to an external PC or console, thanks to its built-in processor, 1024GB of internal storage, and 5819 mAh battery. The comprehensive tracking suite — covering eye tracking, gesture control, 360-degree head movement, and six dedicated sensors — makes it a strong fit for users who prioritize immersive, responsive interaction. Those who value visual clarity will also find the 4320 x 4320 px resolution at 144Hz well-matched to demanding VR content, while adjustable IPD and lenses make it accessible to a broader range of users seeking a personalized fit.

Who is this NOT for?

Users who rely on iOS devices for companion app functionality or smartphone integration will find the Steam Frame limiting, as it only supports Android. Those who need to connect the headset to an external display or PC monitor will face a barrier, since there are no HDMI, DisplayPort, or mini DisplayPort outputs available. Additionally, users who are sensitive to headset weight during long sessions may find the 440 g form factor uncomfortable over extended periods, and the USB 2.0 standard limits those who require fast wired data transfers for large file management.

Design:

weight 440 g
Can be used wirelessly ✓
adjustable IPD ✓
battery power 5819 mAh
has a battery level indicator ✓
thickness 110 mm
height 95 mm
volume 1828.75 cm³
width 175 mm

The Steam Frame has a physical footprint of 175 mm wide, 95 mm tall, and 110 mm thick, with a total volume of 1828.75 cm³ and a weight of 440 g. It can be used wirelessly and features adjustable IPD for a customizable fit. Power comes from a 5819 mAh battery, and a built-in battery level indicator lets users monitor remaining charge at a glance.

Display & Lenses:

resolution 4320 x 4320 px
field of view 110°
refresh rate 144Hz
Display type LCD
Has adjustable lenses ✓
Has a display ✓

The Steam Frame uses an LCD panel with a resolution of 4320 x 4320 pixels and a refresh rate of 144Hz, delivering smooth motion across a 110-degree field of view. The headset includes a display and supports adjustable lenses, allowing users to fine-tune the optics to their individual vision needs.

Performance:

CPU speed 8 x 2.89 GHz
RAM 16GB
internal storage 1024GB
has an external memory slot ✓

The Steam Frame is equipped with an 8-core CPU running at 2.89 GHz per core, paired with 16GB of RAM to handle processing demands. It offers 1024GB of internal storage for local content, and an external memory slot provides the option to expand capacity further if needed.

Tracking:

Tracks head movement ✓
has a gyroscope ✓
Has position tracking ✓
Can track 360° head movement ✓
has an accelerometer ✓
Has gesture control ✓
Has an infrared sensor ✓
Has gaze and eye tracking capabilities ✓
tracking sensors 6
Has a laser tracking system ✕
number of cameras 4
has a compass ✕

The Steam Frame supports full head tracking, including 360-degree head movement tracking and position tracking, backed by six dedicated tracking sensors and four onboard cameras. Motion sensing is handled through a gyroscope and accelerometer, while an infrared sensor and eye and gaze tracking add further input awareness. Gesture control is also supported, giving users additional ways to interact without physical controllers. The headset does not include a compass or a laser tracking system.

Connectivity:

Has USB Type-C ✓
Bluetooth version 5.3
Is compatible with Android ✓
Is compatible with iOS ✕
DisplayPort outputs 0
mini DisplayPort outputs 0
HDMI ports 0
USB version 2
supports Wi-Fi ✓
Wi-Fi version Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 7 (802.11be), Wi-Fi 6E (802.11ax)

The Steam Frame connects via USB Type-C (USB 2.0) and includes Bluetooth 5.3 for wireless peripheral pairing. It supports Wi-Fi across a broad range of standards, from Wi-Fi 4 (802.11n) through to Wi-Fi 7 (802.11be), including Wi-Fi 6E. The headset is compatible with Android devices but does not support iOS. There are no DisplayPort, mini DisplayPort, or HDMI outputs available on this device.

Features:

Game controller included ✓
has see-through mode ✓
has a socket for a 3.5 mm audio jack ✓
Has integrated audio ✓
has stereo speakers ✓
Has touch controllers ✓
supports a remote smartphone ✕
has a remote control ✕
controller weight 130 g
number of microphones 2
has voice commands ✓

The Steam Frame comes with a game controller included, featuring touch controllers that weigh 130 g each. Audio is handled through integrated stereo speakers, and a 3.5 mm headset jack is available for wired headphones, while two built-in microphones support voice commands. The headset also includes a see-through mode, allowing users to view their surroundings without removing the device. A remote control and remote smartphone control are not supported.

Final Verdict

The Steam Frame presents itself as a capable standalone VR headset with a well-rounded specification set, anchored by its 4320 x 4320 px display at 144Hz and an extensive tracking system that covers eye tracking, gesture control, and full 360-degree head movement. The combination of wireless operation, generous onboard storage, and adjustable optics gives it broad appeal for users seeking an immersive, self-contained VR experience. While its weight, USB 2.0 limitation, and lack of video output ports may give pause to some users, these trade-offs are largely consistent with its standalone design philosophy. Overall, the Steam Frame is a well-specified headset that delivers on the core demands of untethered VR use.

Popular Comparisons

Steam Frame
Steam Frame
VS
Meta Quest 3
Meta Quest 3
Steam Frame
Steam Frame
VS
Meta Quest 3S
Meta Quest 3S
Steam Frame
Steam Frame
VS

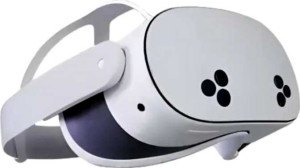

Meta Quest 3S 128GB
