Wooting 60HE v2 specifications and in-depth review

Wooting 60HE v2

Manufacturer: Wooting

The Wooting 60HE v2 is a compact 60% mechanical gaming keyboard built around hall effect switch technology, offering a wired USB connection with a detachable cable and a gasket mount design that sits in an aluminum and plastic housing. It weighs 605 g and measures 302 × 116 × 38 mm, making it a dense but portable layout for desk setups. The keyboard ships in black and includes RGB backlighting with north-facing LEDs, adjustable feet, and PBT double-shot keycaps in an OEM profile.

On the technical side, the Wooting 60HE v2 runs at a polling rate of 8000 Hz and uses Lekker Tikken linear switches mounted on an FR4 plate, with an actuation force of 40 g and a total travel distance of 4 mm. Actuation distance is fully adjustable between 0.1 mm and 4 mm, and the board supports rapid trigger, dual actuation, analog input, and NKRO. Switches are hot-swappable, the layout follows the standard ANSI United States arrangement with media functions accessible via the Fn key, and the keyboard carries a four-year warranty.

Pros
  • Actuation distance is adjustable between 0.1 mm and 4 mm, offering a wide range of sensitivity options for different typing and gaming preferences
  • Rapid trigger, dual actuation, and analog input are all supported, covering a meaningful set of precision input features
  • Switches are hot-swappable, allowing replacements without soldering tools
  • The detachable cable simplifies transport and reduces wear on the connection point
  • An 8000 Hz polling rate ensures very frequent input updates during use
  • A four-year warranty period is notably longer than what many keyboards in this category offer
Cons
  • The 60% layout omits a dedicated numpad, function row, and navigation cluster, which limits usability for tasks that rely on those keys
  • No wrist rest is included, requiring a separate purchase for users who need one
  • QMK, ZMK, and VIA firmware are not supported, restricting customization to the keyboard's own software ecosystem
  • USB passthrough is absent, removing a convenient port option that some compact keyboard users rely on
  • The keyboard is only available in black with no alternative color options listed
  • Media controls are only accessible through the Fn layer rather than dedicated keys
Who is this for?

This keyboard is well-suited to users who prioritize input precision and competitive gaming, given its hall effect switches with adjustable actuation as low as 0.1 mm, rapid trigger support, and 8000 Hz polling rate. The hot-swappable switches and detachable cable also make it a practical choice for those who enjoy customizing or maintaining their hardware over time. Its compact 60% layout works well for users with limited desk space or those who prefer a minimalist setup where mouse movement range is a priority.

Who is this NOT for?

Users who rely on a full keyboard layout for productivity tasks — such as data entry, spreadsheet work, or frequent use of function keys and a numpad — will find the 60% form factor restrictive. Those who prefer open-source firmware customization through QMK, ZMK, or VIA will also be limited, as none of these are supported. Additionally, users who need a plug-and-play solution compatible with Mac-specific key layouts should note that the keyboard is not designed with Mac keys in mind.

General info:

Keyboard type Gaming, Mechanical
Keyboard layout size Compact (60%)
Profile Standard
connectivity Wired
connection type USB
polling rate 8000 Hz
Mount type Gasket mount
designed for Mac ✕
has a detachable cable ✓
height 116 mm
width 302 mm
thickness 38 mm
weight 605 g
warranty period 4 years

The Wooting 60HE v2 is a wired, mechanical gaming keyboard built in a compact 60% layout with a standard profile and USB connectivity. It uses a gasket mount construction and features a detachable cable, making cable management and maintenance straightforward. Physical dimensions come in at 302 × 116 × 38 mm with a weight of 605 g, and the board is not designed for Mac use. It operates at a polling rate of 8000 Hz, is not designed for Mac-specific key layouts, and is backed by a 4-year warranty.

Design:

has RGB lighting ✓
Has a backlit keyboard ✓
Case material Aluminum, Plastic
Plate material FR4
Case colors Black
has adjustable feet ✓
includes a wrist rest ✕
Backlight facing direction North-facing

The Wooting 60HE v2 features a fully backlit keyboard with RGB lighting, with LEDs oriented in a north-facing direction for consistent key illumination. The case is constructed from a combination of aluminum and plastic and is available in black, while the switch plate uses FR4 material. Adjustable feet are included to let users set their preferred typing angle, though no wrist rest is bundled with the keyboard.

Switches:

Switch type Hall effect
Switch feel Linear
Hot-swappable switches ✓
Switch name Lekker Tikken
Actuation distance (min) 0.1 mm
Actuation distance (max) 4 mm
Actuation force 40 g
Total travel distance 4 mm

The Wooting 60HE v2 uses Lekker Tikken hall effect switches with a linear feel, requiring an actuation force of 40 g and offering a total travel distance of 4 mm. Actuation distance is configurable anywhere between 0.1 mm and 4 mm, giving a wide range of sensitivity adjustment. The switches are hot-swappable, allowing them to be replaced without soldering.

Features:

has analog input ✓
has rapid trigger ✓
has dual actuation ✓
has adjustable actuation ✓
has NKRO ✓
has USB passthrough ✕
Has a display ✕
has QMK support ✕
has ZMK support ✕
has VIA support ✕

The Wooting 60HE v2 supports rapid trigger, dual actuation, adjustable actuation, and analog input, covering a broad set of input precision features suited to competitive use. Full N-key rollover (NKRO) is also present, ensuring every simultaneous keypress is registered independently. On the other hand, the keyboard does not include USB passthrough, a display, or support for QMK, ZMK, or VIA firmware.

Keys & layout:

Keyboard layout ANSI (United States)
Keycap type PBT, Double-shot
Keycap profile OEM
uses a standard key layout ✓
Media keys Via Fn key
has a rotary dial ✕

The Wooting 60HE v2 follows the ANSI United States layout with a standard key arrangement, using PBT double-shot keycaps in an OEM profile for durability and consistent legends. Media controls are accessible via the Fn key rather than dedicated keys, and the keyboard does not include a rotary dial.

Final Verdict

The Wooting 60HE v2 is a technically focused compact keyboard built around the strengths of hall effect switch technology, delivering a feature set that centers on input precision and hardware longevity. Its adjustable actuation, rapid trigger, and 8000 Hz polling rate place it firmly in the competitive gaming segment, while hot-swappable switches and a detachable cable add a layer of practical flexibility for long-term use. The 60% layout and absence of QMK, ZMK, or VIA support do narrow its appeal to users with specific needs, but for those whose priorities align with precision input and a streamlined desk footprint, the Wooting 60HE v2 represents a well-specified and coherent option backed by a four-year warranty.

Popular Comparisons

Wooting 60HE v2
Wooting 60HE v2
VS

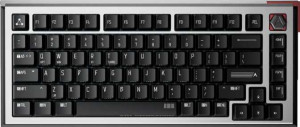

DrunkDeer A75 Ultra HE
DrunkDeer A75 Ultra HE
Wooting 60HE v2
Wooting 60HE v2
VS

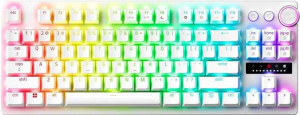

Razer Huntsman V3 Pro TKL
Razer Huntsman V3 Pro TKL
Wooting 60HE v2
Wooting 60HE v2
VS

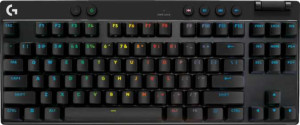

Logitech Pro X TKL Rapid (ISO-UK)
