Zotac Gaming GeForce RTX 5050 Twin Edge specifications and in-depth review

Zotac Gaming GeForce RTX 5050 Twin Edge

Manufacturer: Zotac

The Zotac Gaming GeForce RTX 5050 Twin Edge is a desktop graphics card based on NVIDIA's Blackwell architecture, manufactured on a 5nm process and housing 16.9 billion transistors. Running at a base clock of 2317 MHz and a boost of 2572 MHz, it targets users looking for a compact, accessible Blackwell-generation option with RGB lighting and support for up to four simultaneous displays.

On the memory side, the card carries 8GB of GDDR6 across a 128-bit bus, reaching an effective speed of 20000 MHz and delivering 320 GB/s of bandwidth. Compute performance sits at 13.17 TFLOPS alongside a texture rate of 205.8 GTexels/s, backed by 2560 shading units, 80 TMUs, and 32 ROPs. Feature support includes DirectX 12 Ultimate, OpenGL 4.6, OpenCL 3, ray tracing, DLSS, Intel Resizable BAR, and ECC memory. Connectivity is handled by one HDMI 2.1b port and three DisplayPort outputs, with the card drawing 130W through a PCIe 5.0 interface and measuring 220.5 mm × 120.3 mm.

Pros
  • Supports ray tracing and DLSS, enabling hardware-accelerated visual effects and AI-based upscaling in compatible titles
  • Four display outputs — one HDMI 2.1b and three DisplayPort — allow flexible multi-monitor configurations of up to four screens simultaneously
  • ECC memory support adds data integrity protection, making the card usable in tasks where memory accuracy is important
  • Intel Resizable BAR support allows the CPU to access the full VRAM pool, improving data transfer efficiency
  • RGB lighting is included, offering visual customization options for builds where aesthetics matter
  • The 5nm manufacturing process and 130W TDP result in a relatively contained power draw for a Blackwell-generation card
Cons
  • The 128-bit memory bus width limits memory bandwidth scaling compared to wider-bus configurations in the same tier
  • 8GB of VRAM may prove restrictive for memory-intensive workloads or higher-resolution textures
  • No USB-C output is available, limiting connectivity options for modern USB-C or Thunderbolt-compatible displays
  • XeSS (XMX) is not supported, restricting AI upscaling to DLSS only with no cross-vendor alternative
  • Water cooling is not supported, leaving thermal management entirely dependent on the air-cooling solution
Who is this for?

This card is a reasonable fit for users building a compact desktop system who want access to ray tracing and DLSS without a high power draw, given its 130W TDP and Blackwell-generation feature set. It also suits those who need multi-display workstation setups, as the four video outputs — including HDMI 2.1b and three DisplayPort connections — offer solid flexibility. The inclusion of ECC memory support and OpenCL 3 makes it a viable option for light compute or reliability-sensitive tasks alongside general desktop use.

Who is this NOT for?

Users targeting high-resolution or memory-intensive workloads — such as rendering large texture sets or running demanding titles at 4K with high detail settings — may find the 8GB VRAM and 128-bit memory bus insufficient over time. The card is equally ill-suited to those requiring USB-C display output or water-cooling integration, as neither is supported, which limits compatibility with certain modern monitor setups and custom thermal configurations. Content creators or compute users who rely on XeSS-based upscaling pipelines will also find no support for that technology here.

Performance:

GPU clock speed 2317 MHz
GPU turbo 2572 MHz
pixel rate 82.3 GPixel/s
floating-point performance 13.17 TFLOPS
texture rate 205.8 GTexels/s
GPU memory speed 2500 MHz
shading units 2560
texture mapping units (TMUs) 80
render output units (ROPs) 32
Has Double Precision Floating Point (DPFP) ✓

The card operates at a base clock of 2317 MHz, boosting up to 2572 MHz under load, and delivers 13.17 TFLOPS of floating-point performance alongside a texture rate of 205.8 GTexels/s and a pixel rate of 82.3 GPixel/s. These figures are backed by 2560 shading units, 80 texture mapping units, and 32 render output units, with GPU memory running at 2500 MHz. The card also supports Double Precision Floating Point (DPFP), extending its compute versatility beyond typical consumer workloads.

Memory:

effective memory speed 20000 MHz
maximum memory bandwidth 320 GB/s
VRAM 8GB
GDDR version GDDR6
memory bus width 128-bit
Supports ECC memory ✓

The card is equipped with 8GB of GDDR6 VRAM running across a 128-bit memory bus, reaching an effective speed of 20000 MHz and a maximum memory bandwidth of 320 GB/s. ECC memory support is also included, adding a layer of data integrity protection for workloads where memory accuracy matters.

Features:

DirectX version DirectX 12 Ultimate
OpenGL version 4.6
OpenCL version 3
Supports multi-display technology ✓
supports ray tracing ✓
Supports 3D ✓
supports DLSS ✓
has XeSS (XMX) ✕
AMD SAM / Intel Resizable BAR Intel Resizable BAR
has LHR ✕
has RGB lighting ✓
supported displays 4

The card supports DirectX 12 Ultimate, OpenGL 4.6, and OpenCL 3, covering a broad range of graphics and compute workloads. Ray tracing and DLSS are both supported, while XeSS (XMX) is not available on this model. It also includes stereoscopic 3D support, multi-display technology for up to four simultaneous displays, and Intel Resizable BAR for improved CPU-to-GPU data throughput. LHR is not present, and the card features RGB lighting. XeSS (XMX) is not supported.

Ports:

has an HDMI output ✓
HDMI ports 1
HDMI version HDMI 2.1b
DisplayPort outputs 3
USB-C ports 0
DVI outputs 0
mini DisplayPort outputs 0

The card's output configuration consists of one HDMI 2.1b port and three DisplayPort outputs, offering flexibility for multi-monitor setups. There are no USB-C, DVI, or mini DisplayPort connections on this model.

General info:

GPU architecture Blackwell
Thermal Design Power (TDP) 130W
PCI Express (PCIe) version 5
semiconductor size 5 nm
number of transistors 16900 million
Has air-water cooling ✕
width 220.5 mm
height 120.3 mm

Built on the Blackwell architecture and fabricated at 5nm, the card integrates 16,900 million transistors and connects via a PCIe 5.0 interface. It has a Thermal Design Power of 130W and relies on air cooling, with no water-cooling support. The card measures 220.5 mm in width and 120.3 mm in height, placing it in a relatively compact form factor for its class.

Final Verdict

The Zotac Gaming GeForce RTX 5050 Twin Edge delivers a well-rounded entry into the Blackwell generation, combining ray tracing, DLSS, and a four-display output configuration within a 130W power envelope. Its Blackwell architecture on a 5nm process brings modern feature support — including DirectX 12 Ultimate, ECC memory, and Intel Resizable BAR — to users who want current-generation capabilities without demanding thermal or power requirements. That said, the 8GB VRAM paired with a 128-bit bus does place a ceiling on how far the card can scale with more demanding workloads, and the absence of USB-C output or water-cooling support narrows its fit for certain build configurations. For users whose needs align with its capabilities, this card represents a compact, feature-complete Blackwell option — best suited to those prioritizing modern API support and multi-display flexibility over raw memory headroom.

Popular Comparisons

Zotac Gaming GeForce RTX 5050 Twin Edge
Zotac Gaming GeForce RTX 5050 Twin Edge
VS

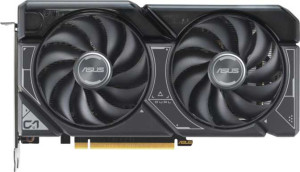

Asus Dual GeForce RTX 4060 OC Edition
