ASRock Radeon RX 7700 Challenger specifications and in-depth review

ASRock Radeon RX 7700 Challenger

Manufacturer: ASRock

The ASRock Radeon RX 7700 Challenger is a desktop graphics card based on AMD's RDNA 3.0 architecture, fabricated on a 5nm process and housing 28.1 billion transistors. It ships with 16GB of GDDR6 memory across a 256-bit bus, delivering up to 622 GB/s of memory bandwidth — a notably wide allocation for this segment. The card operates at a base GPU clock of 1900 MHz, with a boost target of 2459 MHz, and carries a 200W TDP within a 267 × 130 mm form factor.

On the feature side, the RX 7700 Challenger supports DirectX 12 Ultimate and OpenGL 4.6, along with hardware ray tracing, AMD SAM (Smart Access Memory), and multi-display output across up to four screens simultaneously. Its 2560 shading units contribute to a floating-point throughput of 25.18 TFLOPS, backed by 160 texture mapping units and 96 render output units. Display connectivity includes one HDMI 2.1 port and three DisplayPort outputs, while RGB lighting is present on the cooler shroud. The card does not support DLSS or Intel XeSS, and carries no USB-C video output.

Pros
  • 16GB of GDDR6 VRAM across a 256-bit bus provides substantial video memory for high-resolution and memory-intensive workloads
  • Maximum memory bandwidth of 622 GB/s supports fast data throughput between the GPU and its frame buffer
  • Four simultaneous display outputs allow flexible multi-monitor configurations
  • HDMI 2.1 and three full-size DisplayPort outputs cover a wide range of modern display connections without adapters
  • Hardware ray tracing support is included for compatible rendering pipelines
  • ECC memory support adds a layer of data integrity for compute-oriented tasks
Cons
  • No DLSS or XeSS upscaling support limits AI-based resolution scaling options to AMD's own ecosystem
  • Zero USB-C video outputs may require adapters for users with USB-C or Thunderbolt displays
  • No DVI output means older DVI monitors cannot be connected without an adapter
  • Cooling is air-only with no support for liquid or hybrid air-water cooling solutions
  • 200W TDP demands adequate system power delivery and case airflow planning
Who is this for?

This card suits users who work across multi-monitor setups, given its support for up to four simultaneous displays via HDMI 2.1 and three full-size DisplayPort outputs. The combination of 16GB GDDR6 VRAM with 622 GB/s of memory bandwidth makes it a reasonable fit for those running high-resolution textures, large frame buffers, or GPU-accelerated compute tasks that benefit from ECC memory support. Users building systems around AMD's platform will also find AMD SAM compatibility a natural fit, and the hardware ray tracing support extends its relevance to those working with modern rendering pipelines.

Who is this NOT for?

Users who rely on AI-based upscaling technologies such as DLSS or Intel XeSS will find no support for either on this card, making it a poor fit for those workflows. The air-only cooling solution, combined with a 200W TDP, means it is less suited to small form factor or thermally constrained builds where heat dissipation is a concern. Additionally, users with USB-C or DVI displays will face connectivity limitations, as the card offers no USB-C video output and no DVI port.

Performance:

GPU clock speed 1900 MHz
GPU turbo 2459 MHz
pixel rate 236.1 GPixel/s
floating-point performance 25.18 TFLOPS
texture rate 393.4 GTexels/s
GPU memory speed 2430 MHz
shading units 2560
texture mapping units (TMUs) 160
render output units (ROPs) 96
Has Double Precision Floating Point (DPFP) ✓

The ASRock Radeon RX 7700 Challenger runs at a base GPU clock of 1900 MHz, boosting up to 2459 MHz under load, while GPU memory operates at 2430 MHz. Its 2560 shading units, 160 texture mapping units, and 96 render output units combine to deliver a floating-point throughput of 25.18 TFLOPS, a texture rate of 393.4 GTexels/s, and a pixel rate of 236.1 GPixel/s. The card also supports Double Precision Floating Point (DPFP), broadening its suitability for compute workloads beyond standard graphics rendering.

Memory:

effective memory speed 19500 MHz
maximum memory bandwidth 622 GB/s
VRAM 16GB
GDDR version GDDR6
memory bus width 256-bit
Supports ECC memory ✓

The card is equipped with 16GB of GDDR6 VRAM running across a 256-bit memory bus, with an effective memory speed of 19,500 MHz and a maximum memory bandwidth of 622 GB/s. ECC memory support is also present, which can help maintain data integrity in error-sensitive workloads.

Features:

DirectX version DirectX 12 Ultimate
OpenGL version 4.6
OpenCL version 2.2
Supports multi-display technology ✓
supports ray tracing ✓
Supports 3D ✓
supports DLSS ✕
has XeSS (XMX) ✕
AMD SAM / Intel Resizable BAR AMD SAM
has LHR ✕
has RGB lighting ✓
supported displays 4

The ASRock Radeon RX 7700 Challenger supports DirectX 12 Ultimate, OpenGL 4.6, and OpenCL 2.2, covering a broad range of graphics and compute APIs. Hardware ray tracing, stereoscopic 3D, and multi-display output across up to four screens are all supported, while AMD SAM (Smart Access Memory) is available for compatible system configurations. RGB lighting is present on the card. It does not support DLSS or Intel XeSS (XMX), and does not carry an LHR (Lite Hash Rate) limitation.

Ports:

has an HDMI output ✓
HDMI ports 1
HDMI version HDMI 2.1
DisplayPort outputs 3
USB-C ports 0
DVI outputs 0
mini DisplayPort outputs 0

The card's display output configuration consists of one HDMI 2.1 port and three DisplayPort outputs, with no DVI, mini DisplayPort, or USB-C video connections available.

General info:

GPU architecture RDNA 3.0
Thermal Design Power (TDP) 200W
PCI Express (PCIe) version 4
semiconductor size 5 nm
number of transistors 28100 million
Has air-water cooling ✕
width 267 mm
height 130 mm

The ASRock Radeon RX 7700 Challenger is built on AMD's RDNA 3.0 architecture, using a 5nm manufacturing process and integrating 28,100 million transistors. It connects via PCIe 4.0 and carries a rated TDP of 200W. The card measures 267 mm in width and 130 mm in height, and relies solely on air cooling — liquid or hybrid air-water cooling is not supported.

Final Verdict

The ASRock Radeon RX 7700 Challenger is a well-specified graphics card that makes a clear case for users invested in AMD's ecosystem, particularly those who prioritize 16GB of GDDR6 VRAM with 622 GB/s of memory bandwidth for high-resolution workloads or GPU compute tasks. Its RDNA 3.0 architecture, hardware ray tracing support, and four-display output capability give it a practical breadth of functionality, while ECC memory and AMD SAM compatibility add value in specific use scenarios. That said, the absence of DLSS and XeSS upscaling, along with its air-only cooling and 200W power draw, means it demands a well-matched system environment and suits a specific audience rather than a universal one. For users whose workflows align with its strengths, the RX 7700 Challenger delivers a coherent and capable feature set.

Popular Comparisons

ASRock Radeon RX 7700 Challenger
ASRock Radeon RX 7700 Challenger
VS
AMD Radeon RX 7600 XT
AMD Radeon RX 7600 XT
ASRock Radeon RX 7700 Challenger
ASRock Radeon RX 7700 Challenger
VS
Nvidia GeForce RTX 5050
Nvidia GeForce RTX 5050
ASRock Radeon RX 7700 Challenger
ASRock Radeon RX 7700 Challenger
VS

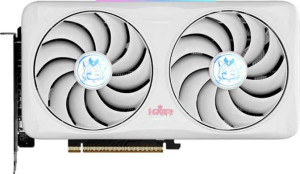

Maxsun GeForce RTX 5060 Ti iCraft OC AIGAX2 8GB
