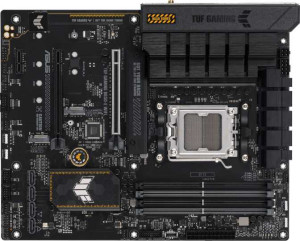

Asus TUF Gaming B650E-Plus Wi-Fi

Name: Asus TUF Gaming B650E-Plus Wi-Fi
Brand: Asus
SKU: 3358

Manufacturer: Asus

The Asus TUF Gaming B650E-Plus Wi-Fi is a reliable ATX motherboard designed for gamers and tech enthusiasts. It features Wi-Fi 6E support and a sleek design, built to handle the demands of modern computing with ease.

Technical specifications include a maximum memory capacity of 256GB with DDR5 support, PCIe 5.0 slots for future-proof performance, and various RAID support options like RAID 0, 1, and 10. It also offers Bluetooth 5.3 connectivity, HDMI 2.1 output, and up to four USB 3.2 Gen 2 ports.

Pros

Supports Wi-Fi 6E for fast and modern wireless connectivity.
Offers flexible RAID support with options for RAID 0, RAID 1, RAID 5, and RAID 10, allowing for a variety of storage configurations.
Equipped with 4 memory slots and supports up to 256GB of DDR5 memory, enabling future-proof upgrades.
Includes RGB lighting for a customizable aesthetic that can enhance the overall build.
Has 6 fan headers, providing ample options for cooling solutions.

Cons

Does not support dual BIOS or integrated graphics, limiting flexibility for certain users.
Lacks support for S/PDIF Out, which may be important for users needing high-quality digital audio output.
No Thunderbolt 3 or 4 support, limiting expansion options for high-speed peripherals.
Does not support mSATA or U.2 connectors, which could restrict certain storage setups.

Who is this for?

The Asus TUF Gaming B650E-Plus Wi-Fi is well-suited for users who prioritize advanced wireless connectivity and customizability. With support for Wi-Fi 6E, it is ideal for those who require fast and stable wireless connections for gaming or media streaming. Its support for up to 256GB of DDR5 memory and RAID configurations like RAID 0, RAID 1, RAID 5, and RAID 10 makes it a solid choice for users looking to build high-performance, expandable systems, especially for gaming, video editing, or other demanding tasks.

Who is this NOT for?

This motherboard is not suitable for users seeking integrated graphics or a dual BIOS setup, as it lacks these features, limiting flexibility for some builds. Additionally, its lack of support for Thunderbolt ports or mSATA connectors makes it less ideal for those who require high-speed peripheral expansion or specific storage configurations. Users relying on a S/PDIF Out port for high-quality audio will also find this product lacking in that regard.

General info:

CPU socket	AM5
chipset	B650
form factor	ATX
release date	May 2025
supports Wi-Fi	✓
Wi-Fi version	Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
Has Bluetooth	✓
Bluetooth version	5.3
HDMI version	HDMI 2.1
Easy to overclock	✓
has RGB lighting	✓
Easy to reset BIOS	✕
Has dual BIOS	✕
has aptX	✕
CPU sockets	1
Has integrated graphics	✕
warranty period	3 years
height	244 mm
width	305 mm
Has integrated CPU	✕

The Asus TUF Gaming B650E-Plus Wi-Fi features an AM5 CPU socket and is compatible with the B650 chipset, offering an ATX form factor. It supports multiple Wi-Fi versions including Wi-Fi 4, 5, 6, and Wi-Fi 6E, and also includes Bluetooth 5.3 for wireless connectivity. While it has RGB lighting and is easy to overclock, it does not support dual BIOS or integrated graphics. The motherboard is equipped with an HDMI 2.1 output and has a 3-year warranty.

Memory:

maximum memory amount	256GB
overclocked RAM speed	8000 MHz
memory slots	4
DDR memory version	5
memory channels	2
Supports ECC memory	✕

The Asus TUF Gaming B650E-Plus Wi-Fi supports up to 256GB of DDR5 memory, with four memory slots and dual-channel memory configuration. It allows overclocked RAM speeds of up to 8000 MHz, providing flexibility for performance tuning. However, it does not support ECC memory, which can be important for error correction in certain workloads.

Ports:

USB 3.2 Gen 2 ports (USB-A)	3
USB 3.2 Gen 1 ports (USB-A)	0
USB 3.2 Gen 2 ports (USB-C)	0
USB 3.2 Gen 1 ports (USB-C)	0
USB 2.0 ports	6
USB 3.2 Gen 2x2 ports	1
USB 4 40Gbps ports	0
USB 4 20Gbps ports	0
Thunderbolt 4 ports	0
Thunderbolt 3 ports	0
has an HDMI output	✓
DisplayPort outputs	1
RJ45 ports	1
Has USB Type-C	✓
eSATA ports	0
DVI outputs	0
has a VGA connector	✕
PS/2 ports	0

The Asus TUF Gaming B650E-Plus Wi-Fi offers a variety of ports, including 3 USB 3.2 Gen 2 USB-A ports, 1 USB 3.2 Gen 2x2 USB-C port, and a USB Type-C connector. It also features HDMI 2.1 and DisplayPort outputs for video, along with a single RJ45 port for network connectivity. Notably, it does not support Thunderbolt, VGA, or PS/2 ports.

Connectors:

USB 3.2 Gen 1 ports (through expansion)	2
USB-C 3.2 Gen 2 ports (through expansion)	1
USB 2.0 ports (through expansion)	4
SATA 3 connectors	4
fan headers	6
USB 3.0 ports (through expansion)	2
M.2 sockets	3
Has TPM connector	✕
U.2 sockets	0
Has mSATA connector	✕
SATA 2 connectors	0

The Asus TUF Gaming B650E-Plus Wi-Fi provides a range of connectors, including 3 M.2 sockets, 4 SATA 3 connectors, and multiple USB expansion options such as 2 USB 3.2 Gen 1 ports and 1 USB-C 3.2 Gen 2 port. Additionally, it supports up to 6 fan headers, but lacks support for TPM, mSATA, and U.2 connectors.

Expansion slots:

PCIe 4.0 x16 slots	1
PCIe 5.0 x16 slots	1
PCIe 3.0 x16 slots	0
PCIe x1 slots	2
PCI slots	0
PCIe 2.0 x16 slots	0
PCIe x8 slots	0

The Asus TUF Gaming B650E-Plus Wi-Fi offers a solid selection of expansion slots, including 1 PCIe 5.0 x16 slot and 1 PCIe 4.0 x16 slot for high-performance GPUs. It also features 2 PCIe x1 slots for smaller expansion cards, but lacks PCI, PCIe 2.0 x16, and PCIe x8 slots.

Audio:

Signal-to-Noise ratio (DAC)	120 dB
audio channels	7.1
Has S/PDIF Out port	✕
audio connectors	5

The Asus TUF Gaming B650E-Plus Wi-Fi features a 120 dB signal-to-noise ratio (DAC) for high-quality audio performance and supports 7.1 audio channels for an immersive sound experience. While it includes 5 audio connectors, it does not have an S/PDIF Out port for digital audio output.

Storage:

Supports RAID 1	✓
Supports RAID 10 (1+0)	✓
Supports RAID 5	✓
Supports RAID 0	✓
Supports RAID 0+1	✕

The Asus TUF Gaming B650E-Plus Wi-Fi supports multiple RAID configurations, including RAID 0, RAID 1, RAID 5, and RAID 10 (1+0), allowing for flexible storage setups and data redundancy. However, it does not support RAID 0+1, which is a variation of RAID 0 and RAID 1.

Final Verdict

The Asus TUF Gaming B650E-Plus Wi-Fi is a robust motherboard designed for gamers and power users seeking solid performance and advanced connectivity options. With Wi-Fi 6E support and the ability to handle up to 256GB of DDR5 memory, it is well-suited for high-performance systems. Its extensive RAID support adds further flexibility for those building high-capacity storage setups. However, its lack of integrated graphics and certain advanced features like Thunderbolt and mSATA connectors may limit its appeal for users requiring these specific capabilities. Overall, it is a solid choice for those focused on gaming, general use, and expandability.
