Gigabyte B550M DS3H AC R2 specifications and in-depth review

Gigabyte B550M DS3H AC R2

Manufacturer: Gigabyte

The Gigabyte B550M DS3H AC R2 is a Micro-ATX motherboard built around AMD's AM4 socket and B550 chipset, designed to accommodate a wide range of Ryzen processors. It measures 244 mm × 244 mm and comes with integrated Wi-Fi 5 (802.11ac) and Bluetooth 5, making it a solid choice for builds where wireless connectivity matters. The board also includes RGB lighting and carries a three-year warranty.

On the memory side, it supports up to 128 GB of DDR4 across four slots in dual-channel configuration, with a standard ceiling of 3200 MHz and an overclocked ceiling reaching 4733 MHz. Expansion options include one PCIe 4.0 x16 slot, one PCIe 3.0 x16 slot, and one PCIe x1 slot, alongside two M.2 sockets and four SATA 3 connectors with RAID 0, 1, and 10 support. The rear I/O provides four USB 3.2 Gen 1 Type-A ports, two USB 2.0 ports, HDMI 2.1, one DisplayPort output, and a single RJ45 port, while onboard audio delivers a 120 dB signal-to-noise ratio over 7.1 channels.

Pros
  • Supports Wi-Fi 5 (802.11ac) and Bluetooth 5 directly on the board, removing the need for separate wireless adapters
  • Four memory slots with dual-channel DDR4 support and a maximum capacity of 128 GB offers substantial room for memory expansion
  • Two M.2 sockets alongside four SATA 3 connectors provide flexible storage configuration options
  • PCIe 4.0 x16 slot enables use of current-generation expansion cards
  • Overclocked RAM speeds up to 4733 MHz give enthusiasts meaningful headroom beyond the standard 3200 MHz ceiling
  • Three-year warranty period provides solid long-term coverage
Cons
  • No USB Type-C ports on the rear I/O limits connectivity with newer peripherals
  • Lacks dual BIOS, meaning there is no automatic fallback if a firmware update goes wrong
  • Only three fan headers may be insufficient for builds with more demanding cooling setups
  • No S/PDIF Out port restricts digital audio output options
  • RAID 5 and RAID 0+1 configurations are not supported, limiting advanced storage redundancy options
  • No easy CMOS reset mechanism, which can complicate BIOS recovery in certain situations
Who is this for?

This board is a practical fit for desktop builders targeting the AM4 platform who want a compact Micro-ATX footprint without sacrificing core functionality. The combination of Wi-Fi 5 and Bluetooth 5 makes it well-suited for setups where running ethernet cables is impractical. Users who plan to populate multiple storage devices will appreciate the two M.2 sockets and four SATA 3 connectors, and the support for DDR4 overclocking up to 4733 MHz along with easy overclocking makes it a reasonable option for enthusiasts looking to tune their system within a B550 build.

Who is this NOT for?

Users who rely heavily on USB Type-C connectivity or require Thunderbolt support will find the rear I/O insufficient, as neither is available on this board. It is also a poor match for workstation-oriented builds that depend on ECC memory or RAID 5 configurations for data integrity and redundancy. Additionally, with only three fan headers, builders assembling systems with multiple cooling components or complex thermal setups may find the onboard fan management options restrictive.

General info:

CPU socket AM4
chipset B550
form factor Micro-ATX
supports Wi-Fi ✓
Wi-Fi version Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Has Bluetooth ✓
Bluetooth version 5
HDMI version HDMI 2.1
Easy to overclock ✓
has RGB lighting ✓
Easy to reset BIOS ✕
Has dual BIOS ✕
has aptX ✕
CPU sockets 1
Has integrated graphics ✕
warranty period 3 years
height 244 mm
width 244 mm
Has integrated CPU ✕

The Gigabyte B550M DS3H AC R2 is built around the AM4 socket with B550 chipset compatibility, housed in a Micro-ATX form factor measuring 244 mm × 244 mm. It features a single CPU socket and supports overclocking, while onboard Wi-Fi 4 (802.11n) and Wi-Fi 5 (802.11ac) along with Bluetooth 5 provide integrated wireless connectivity. The board outputs video over HDMI 2.1 and includes RGB lighting, though it lacks dual BIOS, an easy CMOS reset option, aptX support, and integrated graphics. There is no integrated CPU, and the board does not support ECC memory. A three-year warranty is included.

Memory:

maximum memory amount 128GB
RAM speed (max) 3200 MHz
overclocked RAM speed 4733 MHz
memory slots 4
DDR memory version 4
memory channels 2
Supports ECC memory ✕

The board supports DDR4 memory across four slots in a dual-channel configuration, with a maximum capacity of 128 GB. Standard RAM operates at up to 3200 MHz, while overclocking can push speeds as high as 4733 MHz. ECC memory is not supported.

Ports:

USB 3.2 Gen 2 ports (USB-A) 0
USB 3.2 Gen 1 ports (USB-A) 4
USB 3.2 Gen 2 ports (USB-C) 0
USB 3.2 Gen 1 ports (USB-C) 0
USB 2.0 ports 2
USB 3.2 Gen 2x2 ports 0
USB 4 40Gbps ports 0
USB 4 20Gbps ports 0
Thunderbolt 4 ports 0
Thunderbolt 3 ports 0
has an HDMI output ✓
DisplayPort outputs 1
RJ45 ports 1
Has USB Type-C ✕
eSATA ports 0
DVI outputs 0
has a VGA connector ✕
PS/2 ports 1

The rear I/O includes four USB 3.2 Gen 1 Type-A ports and two USB 2.0 ports, while USB Type-C, USB 3.2 Gen 2, USB 4, Thunderbolt 3, and Thunderbolt 4 are all absent. Display output is handled by an HDMI port and one DisplayPort output, with no DVI or VGA connectors present. Networking is covered by a single RJ45 port, and a PS/2 port is also available for legacy peripherals. There are no eSATA ports on this board.

Connectors:

USB 3.2 Gen 1 ports (through expansion) 2
USB 3.2 Gen 2 ports (through expansion) 0
USB 3.2 Gen 2x2 ports (through expansion) 0
USB-C 3.2 Gen 2 ports (through expansion) 0
USB 2.0 ports (through expansion) 2
SATA 3 connectors 4
fan headers 3
USB 3.0 ports (through expansion) 2
M.2 sockets 2
Has TPM connector ✓
U.2 sockets 0
Has mSATA connector ✕
SATA 2 connectors 0

For internal expansion, the board provides two USB 3.2 Gen 1 headers and two USB 2.0 headers, with no support for USB 3.2 Gen 2, Gen 2x2, or USB-C expansion connectors. Storage connectivity is handled by four SATA 3 connectors and two M.2 sockets, while SATA 2, mSATA, and U.2 are not available. Cooling is managed through three fan headers, and a TPM connector is present for security module support.

Expansion slots:

PCIe 4.0 x16 slots 1
PCIe 5.0 x16 slots 0
PCIe 3.0 x16 slots 1
PCIe x1 slots 1
PCI slots 0
PCIe 2.0 x16 slots 0
PCIe x4 slots 0
PCIe x8 slots 0

The board offers three expansion slots in total: one PCIe 4.0 x16 slot, one PCIe 3.0 x16 slot, and one PCIe x1 slot. PCIe 5.0 x16, PCIe 2.0 x16, PCIe x4, PCIe x8, and legacy PCI slots are not present.

Audio:

Signal-to-Noise ratio (DAC) 120 dB
audio channels 7.1
Has S/PDIF Out port ✕
audio connectors 0

The onboard audio supports 7.1-channel output and delivers a signal-to-noise ratio of 120 dB from the DAC. There are no dedicated audio connectors listed, and an S/PDIF Out port is not included.

Storage:

Supports RAID 1 ✓
Supports RAID 10 (1+0) ✓
Supports RAID 5 ✕
Supports RAID 0 ✓
Supports RAID 0+1 ✕

The board supports RAID 0, RAID 1, and RAID 10 (1+0) configurations, covering common needs for both performance striping and data redundancy. RAID 5 and RAID 0+1 are not supported.

Final Verdict

The Gigabyte B550M DS3H AC R2 delivers a well-rounded feature set within the Micro-ATX form factor, making it a competent choice for AM4 platform builds that benefit from its integrated Wi-Fi 5, Bluetooth 5, and flexible DDR4 memory support up to 128 GB. Its dual M.2 sockets, PCIe 4.0 x16 slot, and overclocking headroom give it enough versatility for enthusiast-oriented builds, though the absence of USB Type-C, limited fan headers, and no dual BIOS mean it is best suited for mainstream rather than demanding workstation or high-end cooling configurations. For users who need a compact, wireless-ready B550 board with solid storage options and a three-year warranty, this board represents a dependable foundation.

Popular Comparisons

Gigabyte B550M DS3H AC R2
Gigabyte B550M DS3H AC R2
VS
Asus TUF Gaming B650E-E Wi-Fi
Asus TUF Gaming B650E-E Wi-Fi
Gigabyte B550M DS3H AC R2
Gigabyte B550M DS3H AC R2
VS
Gigabyte B550M Gaming X Wi-Fi6
Gigabyte B550M Gaming X Wi-Fi6
Gigabyte B550M DS3H AC R2
Gigabyte B550M DS3H AC R2
VS

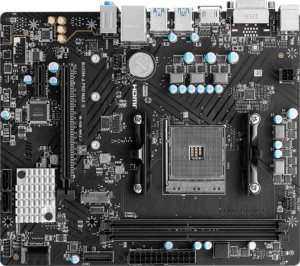

MSI B450M-A Pro Max II
