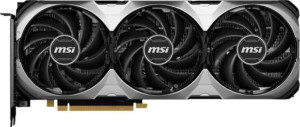

MSI GeForce RTX 5060 Ti Ventus 3X OC 16GB

Manufacturer: MSI

The MSI GeForce RTX 5060 Ti Ventus 3X OC is a mid-range graphics card built on NVIDIA's Blackwell architecture, manufactured using a 5 nm process with 21.9 billion transistors. It ships with 16GB of GDDR7 VRAM across a 128-bit memory bus, delivering an effective memory speed of 28,000 MHz and a peak bandwidth of 448 GB/s. The card operates at a base clock of 2,407 MHz, boosting up to 2,602 MHz under load, and carries a thermal design power of 180W. Its triple-fan Ventus 3X cooling solution measures 306 mm in length and 121 mm in height.

On the feature side, the RTX 5060 Ti Ventus 3X OC supports DirectX 12 Ultimate and OpenGL 4.6, along with hardware-accelerated ray tracing and DLSS. It provides 4,608 shading units, 144 texture mapping units, and 48 render output units, translating to a texture rate of 374.7 GTexels/s and a pixel rate of 124.9 GPixel/s. Display connectivity consists of one HDMI 2.1b port and three DisplayPort outputs, supporting up to four monitors simultaneously. The card uses a PCIe 5.0 interface and includes Intel Resizable BAR support, while ECC memory is also available.

Pros

16GB of GDDR7 VRAM on a card of this tier provides substantial headroom for memory-intensive workloads and high-resolution textures
An effective memory speed of 28,000 MHz and 448 GB/s of bandwidth allow for fast data throughput between the GPU and its frame buffer
Hardware ray tracing and DLSS support expand rendering options without relying solely on rasterization
Supports up to four displays simultaneously, making it practical for multi-monitor setups
Intel Resizable BAR support allows the CPU to access the full GPU frame buffer at once, which can improve data transfer efficiency
ECC memory support helps maintain data integrity, which is useful in workloads where memory errors could be problematic

Cons

The 128-bit memory bus width is narrow for a card with 16GB of VRAM, which can limit memory bandwidth scalability under sustained loads
At 306 mm in length, the card may not fit in smaller or compact PC cases
A 180W TDP requires adequate system power delivery and case airflow to maintain stable thermals
No USB-C output is available, which limits direct connectivity with certain modern displays and devices
RGB lighting is absent, which may not suit users who want visual customization in their build

Who is this for?

This card is well-suited to users who work with memory-intensive rendering or creative workloads, given its 16GB of GDDR7 VRAM and 448 GB/s of bandwidth. The combination of hardware ray tracing, DLSS support, and strong floating-point performance makes it a practical fit for those engaged in real-time 3D visualization or game development. Its four-display output capability also makes it appropriate for users who need a wide multi-monitor desktop environment, whether for productivity, simulation, or content creation pipelines.

Who is this NOT for?

Users working in small form-factor or compact builds may find the 306 mm card length a significant physical constraint. The 128-bit memory bus, while offset partially by GDDR7 speeds, may be a limiting factor for those pushing very high-resolution workloads that demand sustained, wide memory bandwidth. Additionally, users who require USB-C display connectivity or water-cooling integration will find neither supported on this model, making it a poor match for those specific infrastructure or setup requirements.

Performance:

GPU clock speed	2407 MHz
GPU turbo	2602 MHz
pixel rate	124.9 GPixel/s
floating-point performance	23.98 TFLOPS
texture rate	374.7 GTexels/s
GPU memory speed	1750 MHz
shading units	4608
texture mapping units (TMUs)	144
render output units (ROPs)	48
Has Double Precision Floating Point (DPFP)	✓

The MSI GeForce RTX 5060 Ti Ventus 3X OC runs at a base GPU clock of 2,407 MHz, rising to 2,602 MHz in turbo mode, and delivers 23.98 TFLOPS of floating-point performance alongside a pixel rate of 124.9 GPixel/s. Its 4,608 shading units work in tandem with 144 texture mapping units and 48 render output units, producing a texture rate of 374.7 GTexels/s. The GPU memory operates at 1,750 MHz, and the card supports Double Precision Floating Point (DPFP), broadening its suitability beyond standard rasterization workloads.

Memory:

effective memory speed	28000 MHz
maximum memory bandwidth	448 GB/s
VRAM	16GB
GDDR version	GDDR7
memory bus width	128-bit
Supports ECC memory	✓

The card is equipped with 16GB of GDDR7 VRAM running across a 128-bit memory bus, achieving an effective memory speed of 28,000 MHz and a maximum memory bandwidth of 448 GB/s. ECC memory support is also included, which helps maintain data integrity by detecting and correcting memory errors during operation.

Features:

DirectX version	DirectX 12 Ultimate
OpenGL version	4.6
OpenCL version	3
Supports multi-display technology	✓
supports ray tracing	✓
Supports 3D	✓
supports DLSS	✓
has XeSS (XMX)	✕
AMD SAM / Intel Resizable BAR	Intel Resizable BAR
has LHR	✕
has RGB lighting	✕
supported displays	4

The MSI GeForce RTX 5060 Ti Ventus 3X OC supports DirectX 12 Ultimate, OpenGL 4.6, and OpenCL 3, covering a broad range of graphics and compute APIs. Hardware-accelerated ray tracing and DLSS are both included, while XeSS (XMX) is not supported. The card can drive up to four displays simultaneously via its multi-display support, and stereoscopic 3D is also available. Intel Resizable BAR is supported, which can help improve data transfer between the CPU and GPU. The card does not feature LHR or RGB lighting.

Ports:

has an HDMI output	✓
HDMI ports	1
HDMI version	HDMI 2.1b
DisplayPort outputs	3
USB-C ports	0
DVI outputs	0
mini DisplayPort outputs	0

The card's output configuration consists of three DisplayPort outputs and one HDMI 2.1b port, providing four physical connections in total. There are no DVI, mini DisplayPort, or USB-C outputs present on this model.

General info:

GPU architecture	Blackwell
Thermal Design Power (TDP)	180W
PCI Express (PCIe) version	5
semiconductor size	5 nm
number of transistors	21900 million
Has air-water cooling	✕
width	306 mm
height	121 mm

Built on the Blackwell architecture and fabricated using a 5 nm process, the card integrates 21,900 million transistors and connects to the motherboard via a PCIe 5.0 interface. It carries a thermal design power of 180W and relies on air cooling, as water cooling is not supported. Physically, the card measures 306 mm in width and 121 mm in height.

Final Verdict

The MSI GeForce RTX 5060 Ti Ventus 3X OC presents a well-rounded specification sheet anchored by its 16GB of GDDR7 VRAM and Blackwell architecture, making it a capable option for users engaged in real-time rendering, multi-display workflows, or compute-adjacent creative tasks. While the 128-bit bus width and absence of USB-C outputs reflect certain practical constraints, the card's support for ray tracing, DLSS, ECC memory, and Intel Resizable BAR demonstrates a feature set that extends meaningfully beyond basic rasterization. For users whose workloads align with its strengths and whose system can accommodate its physical footprint and power requirements, it represents a technically coherent choice within its category.
