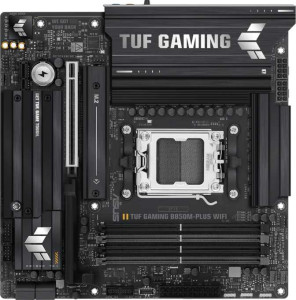

Asus TUF Gaming B850M-Plus Wi-Fi7

Name: Asus TUF Gaming B850M-Plus Wi-Fi7
Brand: Asus
SKU: 6911

Manufacturer: Asus

The Asus TUF Gaming B850M-Plus Wi-Fi7 is a Micro-ATX motherboard built around the AM5 socket and B850 chipset, offering a compact yet capable platform for AMD-based builds. It features Wi-Fi 7 (802.11be) along with Bluetooth 5.4, making it well-suited for setups where wireless connectivity is a priority. RGB lighting, dual BIOS, and an easy CMOS reset button round out the user-friendly design touches, and the board carries a three-year warranty.

On the memory side, the board supports DDR5 across four slots with a maximum capacity of 256 GB and overclocked speeds reaching up to 8000 MHz in a dual-channel configuration. Expansion options include one PCIe 5.0 x16 slot and three M.2 sockets alongside four SATA 3 connectors, with RAID 0, 1, 5, and 10 all supported. The rear I/O provides three USB 3.2 Gen 2 Type-A ports, one USB 3.2 Gen 2x2 Type-C port, four USB 3.2 Gen 1 Type-A ports, HDMI 2.1, one DisplayPort output, and a single RJ45 Ethernet port, while the onboard audio delivers a 120 dB signal-to-noise ratio over a 7.1-channel layout.

Pros

Supports Wi-Fi 7 along with four older Wi-Fi standards, covering a wide range of wireless connectivity needs
Four DDR5 slots allow up to 256 GB of memory with overclocked speeds reaching 8000 MHz
Three M.2 sockets combined with four SATA 3 connectors provide flexible storage configuration options
Dual BIOS and an easy CMOS reset button simplify recovery from failed updates or misconfigurations
A single PCIe 5.0 x16 slot ensures compatibility with the latest generation expansion cards
RAID 0, 1, 5, and 10 support offers meaningful flexibility for storage redundancy and performance setups

Cons

Micro-ATX form factor limits the total number of expansion slots, with only one PCIe x1 slot alongside the primary x16 slot
No USB 4 or Thunderbolt ports are available on the rear I/O
ECC memory is not supported, ruling out use cases that require error-correcting RAM
No S/PDIF output is present for digital audio passthrough to external receivers
No TPM connector is available on the board

Who is this for?

This board is a practical fit for AMD Ryzen builders working within a compact desktop footprint who still want access to modern connectivity and storage options. The Wi-Fi 7 support and Bluetooth 5.4 make it well-suited for wireless-focused setups where a clean, cable-light build is preferred. Users planning to run fast DDR5 memory kits, multiple NVMe drives across the three M.2 sockets, or a current-generation GPU through the PCIe 5.0 x16 slot will find the feature set accommodating. The RAID 0, 1, 5, and 10 support also makes it a reasonable choice for home or small office environments where basic storage redundancy is a requirement.

Who is this NOT for?

This board is not a strong match for users who rely on Thunderbolt or USB 4 connectivity, as neither is available on the rear I/O, which could be limiting for those working with high-bandwidth external devices or docking stations. The Micro-ATX form factor and limited expansion slot count make it a poor fit for builds that require multiple full-size PCIe cards simultaneously. Additionally, users in professional or workstation environments where ECC memory is a requirement for data integrity will need to look elsewhere, as this board does not support error-correcting RAM.

General info:

CPU socket	AM5
chipset	B850
form factor	Micro-ATX
supports Wi-Fi	✓
Wi-Fi version	Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
Has Bluetooth	✓
Bluetooth version	5.4
HDMI version	HDMI 2.1
Easy to overclock	✓
has RGB lighting	✓
Easy to reset BIOS	✓
Has dual BIOS	✓
has aptX	✕
CPU sockets	1
Has integrated graphics	✕
warranty period	3 years
height	244 mm
width	244 mm
Has integrated CPU	✕

The board uses the AM5 socket paired with the B850 chipset and comes in a Micro-ATX form factor measuring 244 mm × 244 mm, making it a compact option for AMD-based builds. It supports a single CPU and has no integrated processor or onboard graphics. Wireless connectivity is well covered, with Wi-Fi 7 (802.11be) alongside backward compatibility through Wi-Fi 6E, 6, 5, and 4, while Bluetooth 5.4 is also built in, though aptX is not supported. The board includes HDMI 2.1 output, supports easy overclocking, and features RGB lighting. Practical conveniences include a dual BIOS setup and a straightforward CMOS reset option, and the board is backed by a three-year warranty.

Memory:

maximum memory amount	256GB
overclocked RAM speed	8000 MHz
memory slots	4
DDR memory version	5
memory channels	2
Supports ECC memory	✕

This board uses DDR5 memory across four slots in a dual-channel configuration, supporting a maximum installed capacity of 256 GB. Overclocked RAM speeds can reach up to 8000 MHz, giving enthusiasts room to push memory performance beyond standard rates. ECC memory is not supported.

Ports:

USB 3.2 Gen 2 ports (USB-A)	3
USB 3.2 Gen 1 ports (USB-A)	4
USB 3.2 Gen 2 ports (USB-C)	0
USB 3.2 Gen 1 ports (USB-C)	0
USB 2.0 ports	4
USB 3.2 Gen 2x2 ports	1
USB 4 40Gbps ports	0
USB 4 20Gbps ports	0
Thunderbolt 4 ports	0
Thunderbolt 3 ports	0
has an HDMI output	✓
DisplayPort outputs	1
RJ45 ports	1
Has USB Type-C	✓
eSATA ports	0
DVI outputs	0
has a VGA connector	✕
PS/2 ports	0

The rear I/O offers a varied USB lineup, including three USB 3.2 Gen 2 Type-A ports, four USB 3.2 Gen 1 Type-A ports, four USB 2.0 ports, and one USB 3.2 Gen 2x2 Type-C port, while USB 3.2 Gen 2 Type-C, USB 4, Thunderbolt 3, and Thunderbolt 4 ports are absent. Display output is handled by an HDMI port and one DisplayPort, with no DVI or VGA connectors present. Networking is covered by a single RJ45 port, and there are no eSATA or PS/2 ports on offer.

Connectors:

USB 3.2 Gen 1 ports (through expansion)	2
USB-C 3.2 Gen 2 ports (through expansion)	1
USB 2.0 ports (through expansion)	3
SATA 3 connectors	4
fan headers	5
USB 3.0 ports (through expansion)	2
M.2 sockets	3
Has TPM connector	✕
U.2 sockets	0
Has mSATA connector	✕
SATA 2 connectors	0

For internal expansion, the board provides two USB 3.2 Gen 1 headers, two USB 3.0 headers, one USB-C 3.2 Gen 2 header, and three USB 2.0 headers. Storage connectivity includes three M.2 sockets and four SATA 3 connectors, while SATA 2, U.2, and mSATA are not available. Five fan headers are present for cooling management, and there is no TPM connector on the board.

Expansion slots:

PCIe 4.0 x16 slots	0
PCIe 5.0 x16 slots	1
PCIe 3.0 x16 slots	0
PCIe x1 slots	1
PCI slots	0
PCIe 2.0 x16 slots	0
PCIe x4 slots	0
PCIe x8 slots	0

The board offers one PCIe 5.0 x16 slot as the primary expansion option, along with one PCIe x1 slot for smaller add-in cards. There are no PCIe 4.0, 3.0, or 2.0 x16 slots, and no PCIe x4, x8, or legacy PCI slots are present.

Audio:

Signal-to-Noise ratio (DAC)	120 dB
audio channels	7.1
Has S/PDIF Out port	✕
audio connectors	3

The onboard audio supports a 7.1-channel layout and delivers a signal-to-noise ratio of 120 dB from the DAC, with three analog audio connectors available on the rear panel. An S/PDIF output port is not included.

Storage:

Supports RAID 1	✓
Supports RAID 10 (1+0)	✓
Supports RAID 5	✓
Supports RAID 0	✓
Supports RAID 0+1	✕

The board supports RAID 0, 1, 5, and 10 configurations, covering a broad range of storage setups from performance striping to mirroring and fault-tolerant arrays. RAID 0+1 is not supported.

Final Verdict

The Asus TUF Gaming B850M-Plus Wi-Fi7 is a well-rounded Micro-ATX motherboard that delivers a capable feature set for AM5 builds without stretching beyond a compact form factor. Its Wi-Fi 7 support, DDR5 compatibility with up to 256 GB capacity, three M.2 sockets, and a PCIe 5.0 x16 slot position it as a solid choice for modern desktop builds where wireless connectivity and storage flexibility matter. The absence of Thunderbolt, USB 4, and ECC memory support does narrow its appeal for specialized or professional workloads, but for enthusiast desktop builds centered around AMD Ryzen where reliability features like dual BIOS and broad RAID support are valued, this board covers the essentials with few notable gaps.
